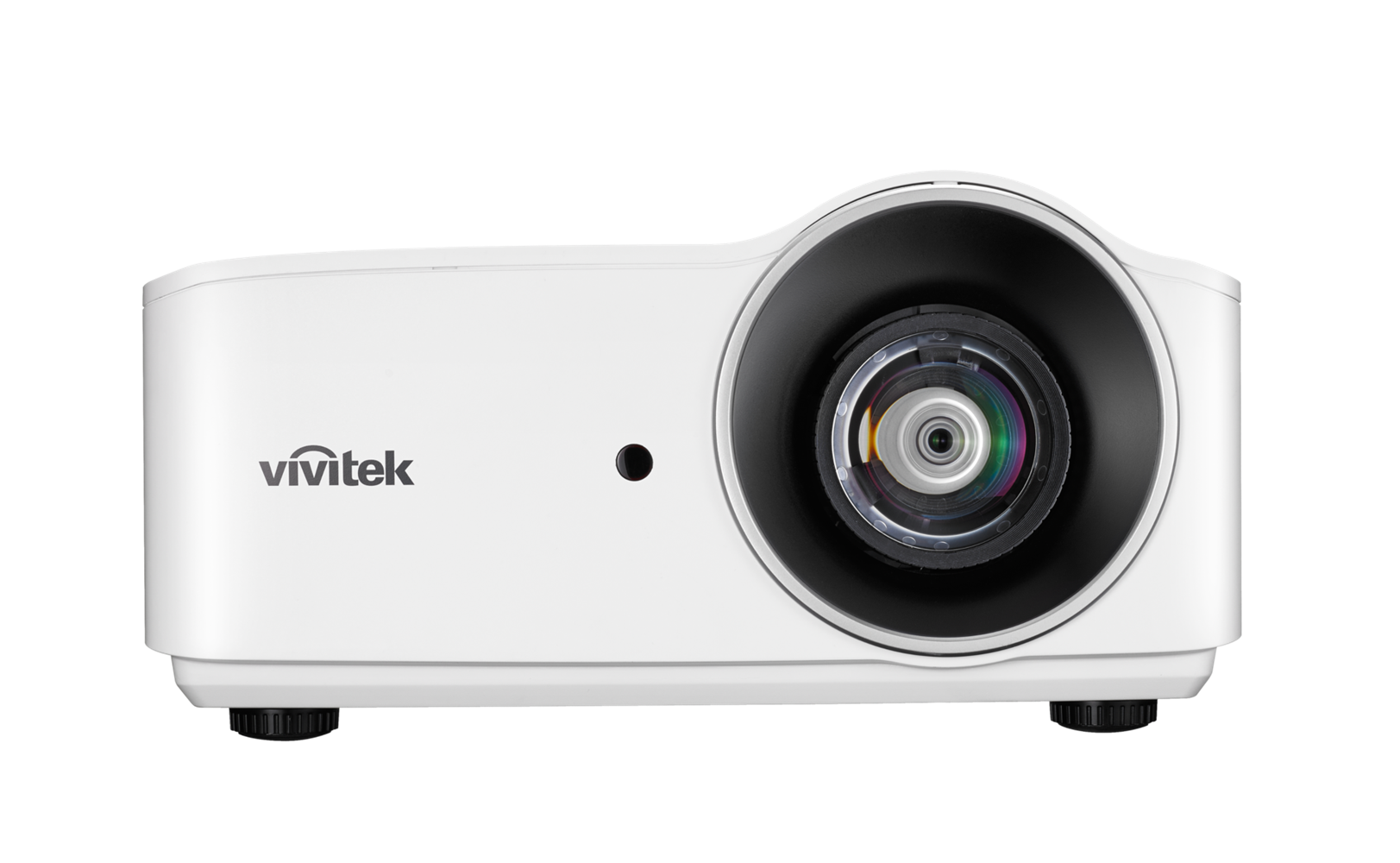

Vivitek DU4371Z-­ST Short Throw Laser Projector

Product Code: DU4371Z-­ST


• DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
• 5100lm high brightness with 30,000 hrs (Eco) laser life
• 0.50:1 Short Throw Ratio
• IP6X/ IP5X high Standard Anti­Dust compliant
• Delivers up to a 300” image from a distance close to the projection surface
• Rec 709 excellent color performance
• Constant Brightness to keep the brightness constant
• 360° (degree) positioning for flexible installation
• H/V keystone / 4 corner geometric adjustment
• HDBaseT™ interface for the transmission of high­quality audio and video data over 100M

Features & Specifications

Display Type Single chip DLP® Technology by Texas Instruments
Brightness 5100 ANSI Lumens
Native Resolution WUXGA (1920x1200)
Max. Supported Resolution WUXGA (1920x1200)
Contrast Ratio 30,000 :1
Native Aspect Ratio 16:10
Keystone Correction Vertical: +/­15°, Horizontal +/­15°

Throw Ratio 0.5:1
Image Size (Diagonal) 60" ­ 300"
Projection Distance 0.76 ­ 1.35 m
Projection Lens F/2.8 , f=7.46 mm
Zoom Ratio Fixed
Offset 121%(Full) / 110.5%(Half)
Focus Manual

Features 3D Features, 3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D
Mandatory Formats supported (top/bottom, right/left, frame sequential),
Keypad lock

I/O Connection Ports VGA­In (15pin D­Sub) (1x), HDMI Number of Ports 1.4a (3x), Composite Video (1x), Audio­In (RCA) (1x), Audio­In (Mini­Jack) (1x), VGA­Out (15pin D­Sub) (1x), RJ45 (2x LAN / HDBaseT), IP Telnet Capable Over RJ­45, RS232 (1x ), 3D­Sync (1x 3D Sync out), USB A (1x 5V 1.5A), USB miniB (Service), Microphone (Mini­Jack) (1x), Remote Jack(wire remote)

Dimensions (W x D x H) 360 x 440 x 186.3 mm
Weight 10.5 kg
Noise Level 36dB/34dB (Normal/Eco. Mode)
Power AC 100­240V, 50/60Hz
Control Software PJ ­ Control V3.0.0.4
Warranty Standard Laser Phosphor Projector Warranty: 5­Year warranty on projector/ 5­year or 10000h on the Laser Phosphor illumination source (whichever comes first)
Standard Accessories Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), R/C Wire 3.5mm Jack, AC Power Cord
Optional Accessories Remote Control P/N (5041846602)
UPC Code 813097024633
